Frontline 505 Wheels
Frontline 505 Wheels- 20” & 22”
• Visit www.frontlineallterrain.com for more info and pictures!
• 5 Spoke Styling
• 1200 lb rating
• Clear Coated Finishes
• Lifetime Structural Warranty
• Screw-in Center Cap
|
Bike |
F/R |
Size |
Offset/ET |
BP |

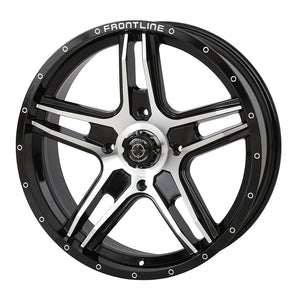

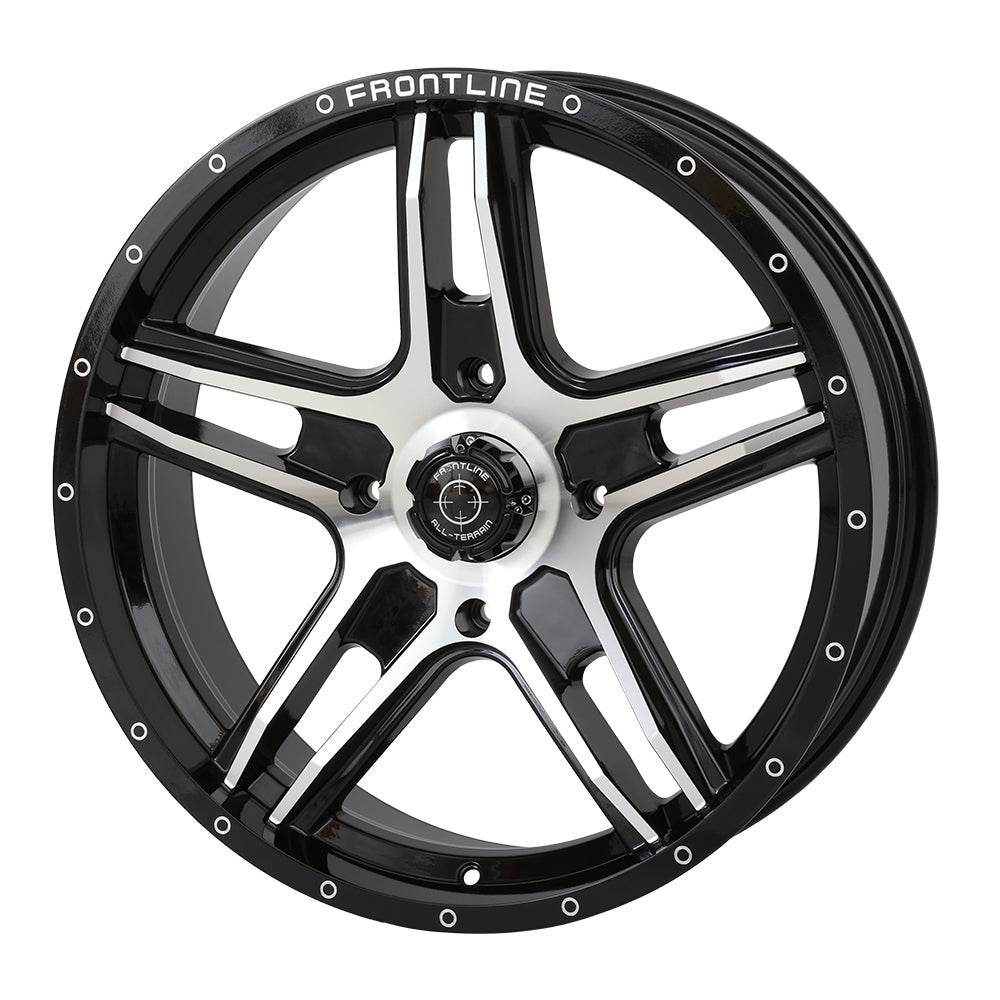

Machined/Black |

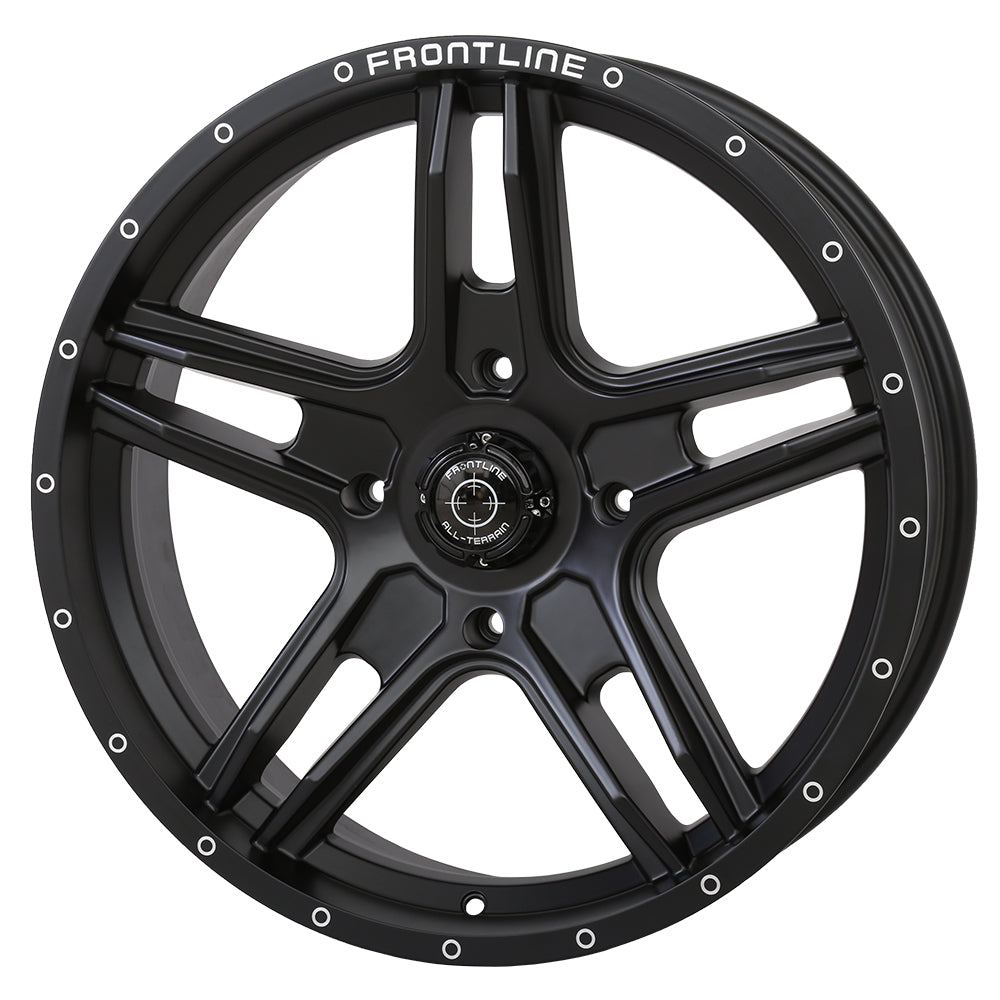

Matte Black |

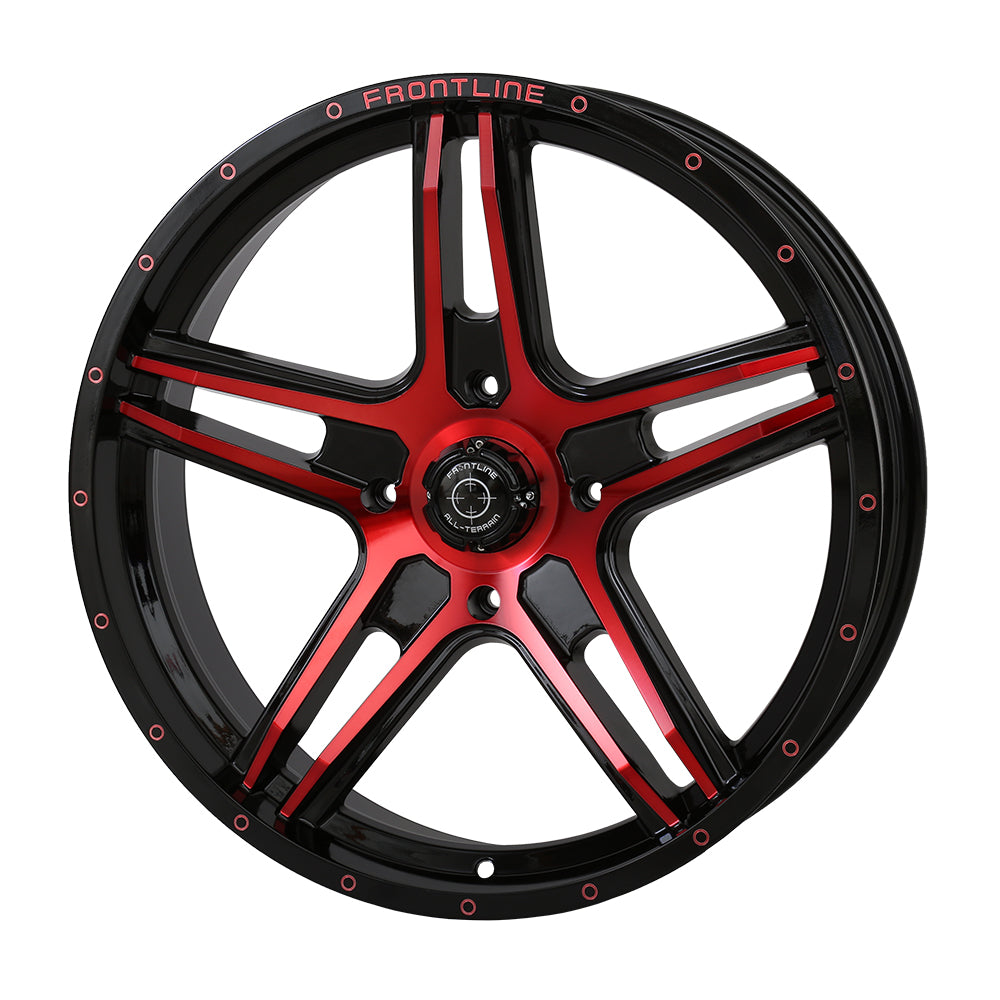

Dynamic Red |

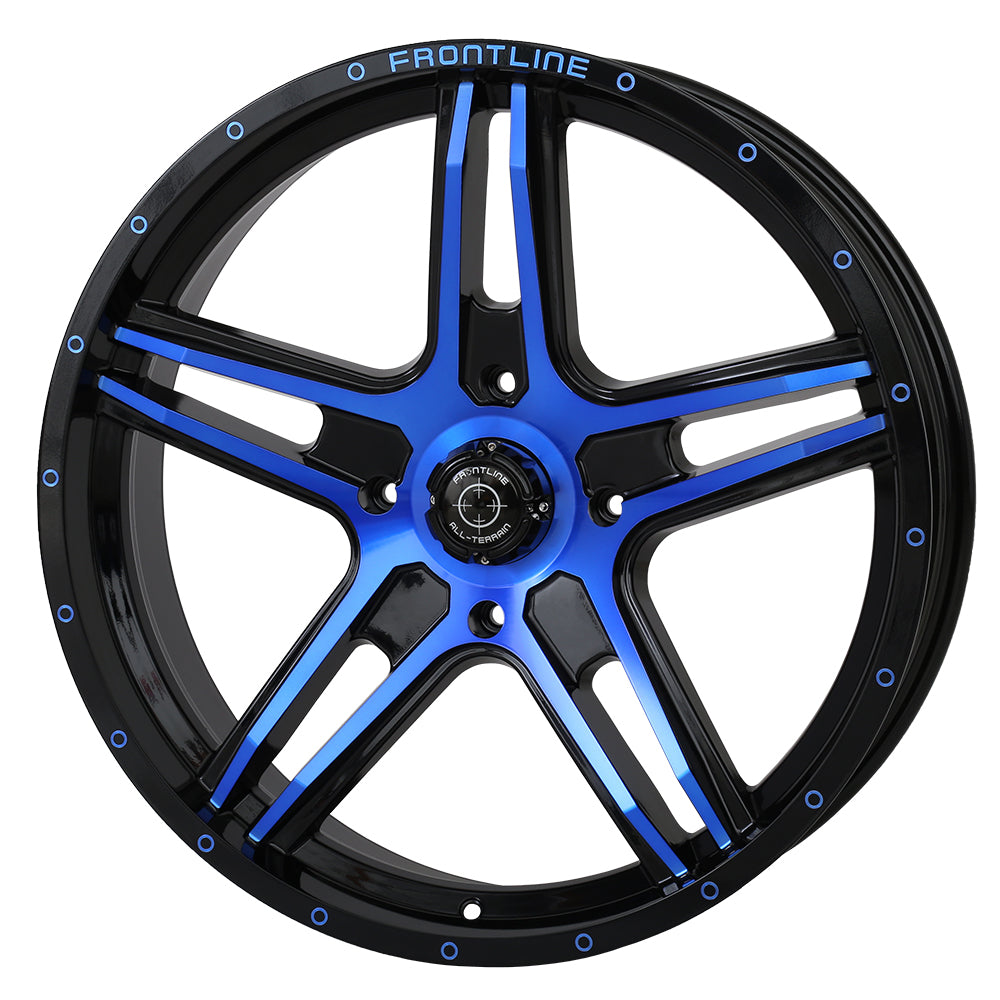

Dynamic Blue |
Lug Size |
Lug Kit # |
|
Can-Am |
|
|
|
|
|
|
|
|
|
|
|
Commander, Maverick 800/1000, Outlander, Renegade, Defender 16-22 |
F/R |
20x6.5 |
4+2.5 +10mm |
4/137 |
20FL03M37 |
20FL03B37 |
20FL03R37 |
20FL03U37 |
10x1.25 |
NUTKIT01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Maverick X3 2018-22, X3 Max, Maverick Trail |
F/R |
20x6.5 |
4+2.5 +10mm |
4/137 |
20FL03M37 |
20FL03B37 |
20FL03R37 |
20FL03U37 |
12x1.5 |
NUTKIT11 |
|
Honda |
|
|
|
|
|
|
|
|
|
|
|
Pioneer 1000 All |
F/R |
20x6.5 |
4+2.5 +10mm |
4/137 |
20FL03M37 |
20FL03B37 |
20FL03R37 |
20FL03U37 |
12x1.5 |
NUTKIT11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Talon 19-22, Talon 4 |
F/R |
20x6.5 |
4+2.5 +10mm |
4/137 |
20FL03M37 |
20FL03B37 |
20FL03R37 |
20FL03U37 |
12x1.5 |
NUTKIT11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Kawasaki |
|
|
|
|
|
|
|
|
|
|
|
Teryx 750, Mule 2000-3000 Series |
F/R |
20x6.5 |
4+2.5 +10mm |
4/137 |
20FL03M37 |
20FL03B37 |
20FL03R37 |
20FL03U37 |
12x1.25 |
NUTKIT14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Mule FXT Pro, FXR, MX |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
12x1.25 |
NUTKIT14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
KRX100 2020-22 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
12x1.25 |
NUTKIT14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Textron/Arctic Cat |
|
|
|
|
|
|
|
|
|
|
|
Wildcat XX 2019 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
12x1.5 |
NUTKIT11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Polaris |
|
|
|
|
|
|
|
|
|
|
|
335 Sportsman ‘99-06, 400/450 Sportsman ‘01-21, 500 Magnum ‘02-06, 500/570 Sportsman ‘96-’19 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
3/8”-24 |
NUTKIT03 |
|
RZR 570 14-22, 600 Sportsman ‘03-09, 700 Sportsman ‘02-09, 800 |
|
|
|
|
|
|
|
|
|
|
|
Sportsman ‘05-’14 |
|
|
|
|
|
|
|
|
|
|
|
Ranger 500/ETX/570/EV/800 6x6 4x4 ‘03-21 |
|
|
|
|
|
|
|
|
|
|
|
RZR800/900XP ‘08-14, ACE 570/900 ‘14-22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sportsman 550/850/1000 XP ‘09-22, Scrambler 850/1000XP ‘14-22 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
10x1.25 |
NUTKIT01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RZR XP 1000/XP 4 1000 14-22, RZR 900/900 XC/900/1000 S 15-22 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
12x1.5 |
NUTKIT11 |
|
Ranger Diesel/570 Full size/900XP/1000 13-21 |
|
|
|
|
|
|
|
|
|
|
|
Yamaha |
|
|
|
|
|
|
|
|
|
|
|
R-Max 1000 2021-22 |
F/R |
20x6.5 |
4+2.5 +5mm |
4/156 |
20FL03M56 |
20FL03B56 |
20FL03R56 |
20FL03U56 |
12x1.25 |
NUTKIT14 |
